Technical Desktops


9000-237

200 Series Selection:

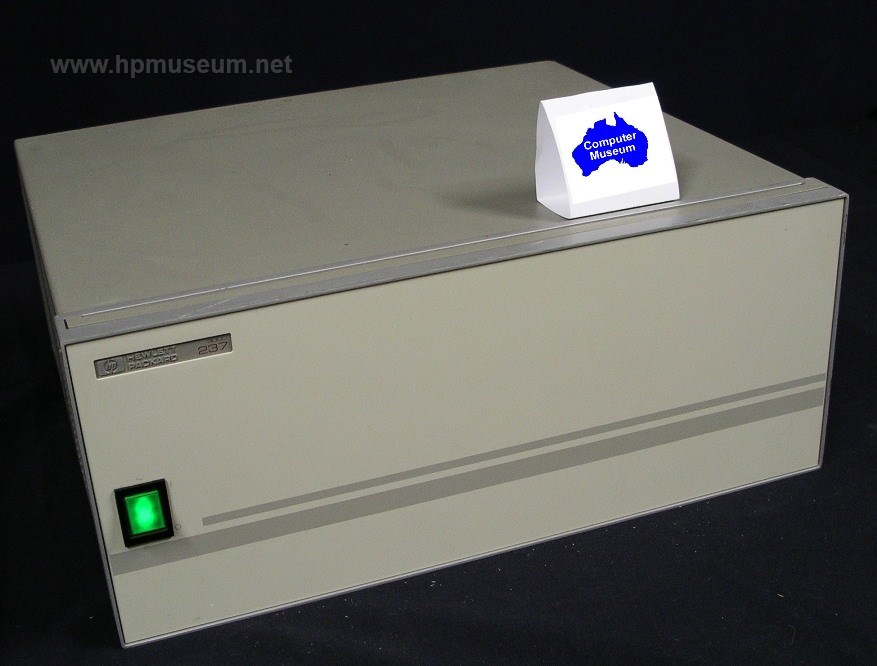

Name: 9837H
Product Number: 9837
Introduced: 1984
Division: Fort Collins Systems
Original Price: $14500
Catalog Reference: 1985, page 74
Donated by: Stan Kurzet, Newport Beach California.

Description:

The 9837H was the high-performance graphics workstation of the 200 Series range. This unit came standard with 512K RAM and a 12.5 MHz Motorola 68000 processor. It also came with a high-resolution (1024 x 768 dot) seventeen inch monitor (98781A) and mouse. Like the 9920, the 9837 was a modular, rack-mountable computer, with 15 expansion slots. The 9837 was also known as the 9000 Model 237 and 9000/237. The 9837 was identical to the 9920 except for the high resolution video board plugged into the bottom-most slot of the back plane (this slot was empty in the 9920). The 9837 also had a plug for an HP-HIL keyboard rather than the standard keyboard used on the 9816 and 9920.

The 9000/237 was obsoleted in May of 1986.

Be sure to visit Olivier De Smet's emulator project for 200 Series computers.

Collector's notes:

9837s are very rare. We have two units at the museum. We have not succeeded in getting either unit to output to a 98786A or 98781A monitor using the built-in high-resolution video card (although both units will happily output to a composite monitor using the 98204 interface).
