9816 with 9122

200 Series Selection:

Name: 9816
Product Number: 9816
Introduced: 1982
Division: Desktop Computer Division

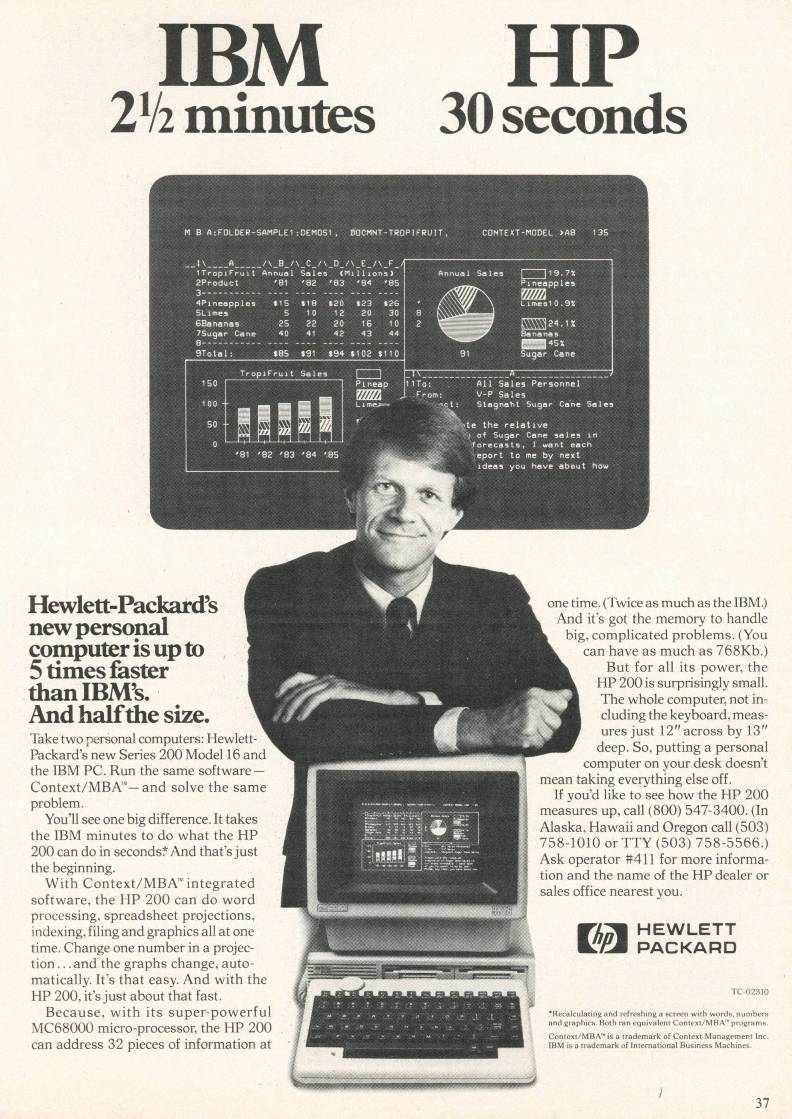

Ad: Click to see, With Context MBA, Click to see
Original Price: $3895
Catalog Reference: 1984, page 602

Description:

The 9816 was introduced in late 1982. This was the low-cost model in the 200 Series range. It only had two expansion slots and featured a monitor integrated with the system unit and modular keyboard and mass storage (usually a 9121 dual 3.5 inch floppy drive). The monitor was nine inches diagonally with a 400 by 300 dot resolution. The 9816A came standard with 128K RAM. The 9816S came standard with 256K RAM. The 9816 family was also known as the 200 Series Model 16, 9000 Model 216 and 9000/216.

Be sure to visit Olivier De Smet's emulator project for 200 Series computers.

Collector's Notes:

9816s are very simple and very robust. 90 percent of the units that come into the museum work. We have never seen a 9816 with a screen problem. The detachable keyboards seem to assist with the reliability. Whereas 9826 and 9836 keys often break off when dropped, the lighter detachable keyboards for the 9816 seem to absorb the abuse more gracefully (even the large "Nimitz" keyboard). The 9816 has only two expansion slots, so troubleshooting the back plane is not a chore.

As of 2016, we have seen only three failures in 9816 computers. One had a non-functioning power supply as it was turned on before the proper fuse and switch settings were made. Another unit had defective main memory. Instead of troubleshooting the main memory, an easy way to fix this problem is to use expansion memory as main memory by telling the CPU that memory starts at the address of the expansion memory card (using the dip switches on the motherboard). The final failure we encountered was a defective keyboard control chip on the motherboard, which can be replaced.
